Build-to-Print CNC Turning for Custom Components
FIWOK supports build-to-print CNC turning for custom shafts, pins, bushings, fittings, and other rotational components. Material, dimensions, threads, tolerances, finishing, documentation, and packing requirements can be reviewed according to the drawing, quantity, and confirmed project scope.
Typical CNC Turning Part Families
These examples show common rotational part families that may be suitable for CNC turning. Manufacturing requirements can be reviewed according to the drawing, material, part geometry, tolerance requirements, quantity, and confirmed project scope.
CNC turning can support individual prototype parts, small batches, and repeat-production requirements. The appropriate production route depends on part design, material, feature complexity, quantity, and secondary-operation needs.

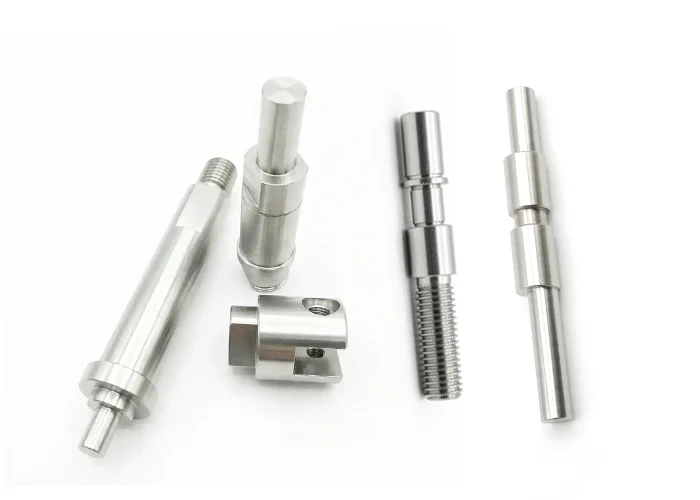

Shafts and Axles
Rotational components with specified diameters, shoulders, grooves, threads, and related datum features.

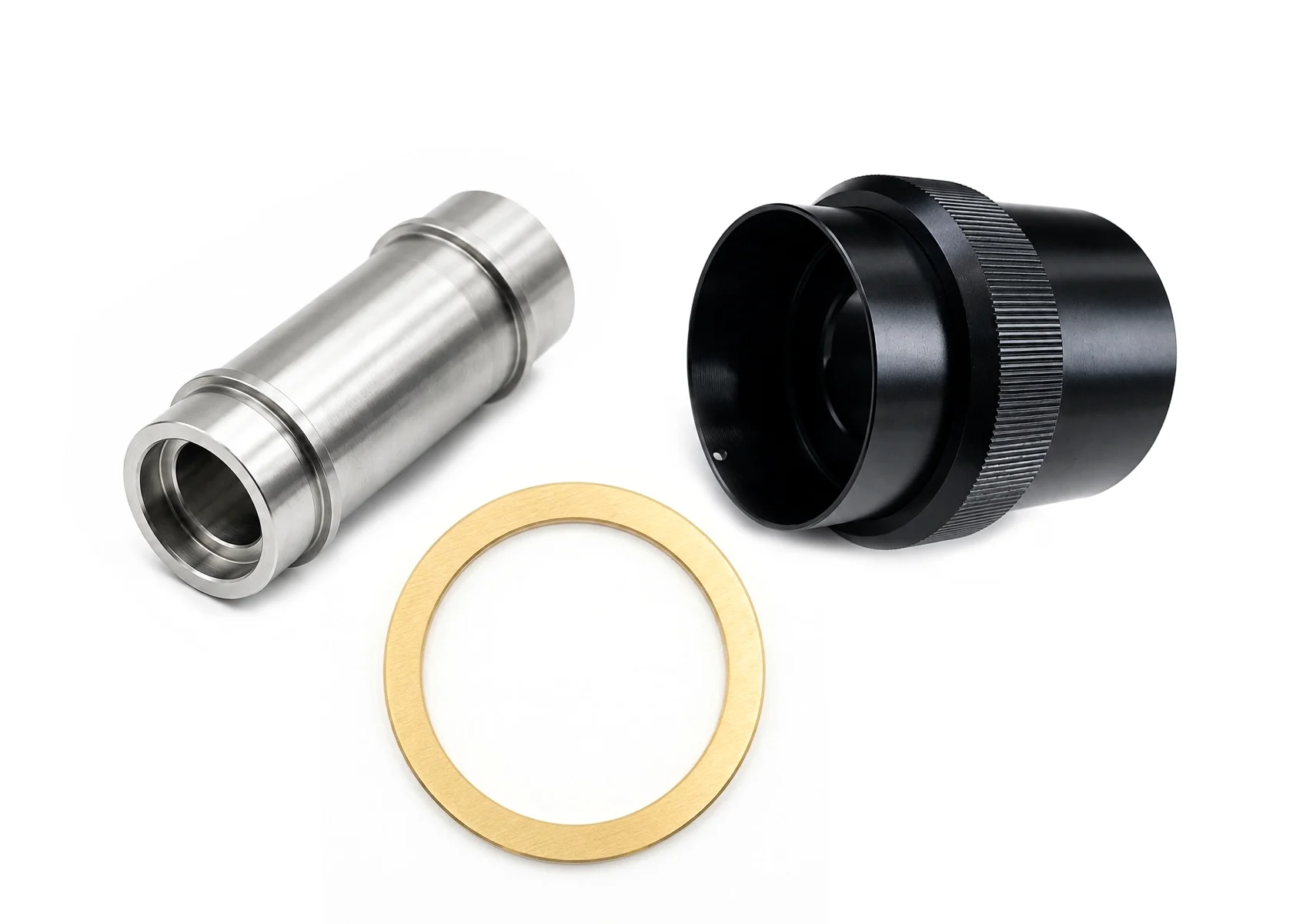

Bushings, Sleeves, and Spacers
Parts defined by specified internal bores, outer diameters, lengths, and mating or assembly interfaces.

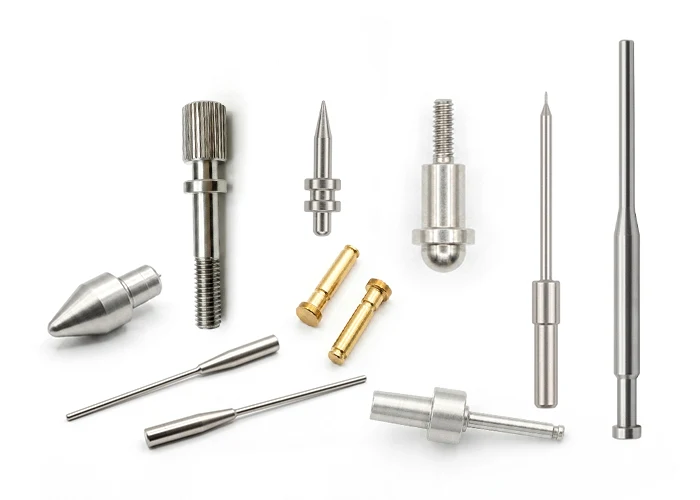

Pins and Small Turned Parts
Pins, dowels, and other small rotational parts with specified diameters, lengths, threads, grooves, or related features.
Turning Process Options for Different Part Requirements
CNC turning, Swiss turning, and automatic lathe turning can be considered according to part geometry, diameter, length, material, feature complexity, tolerance requirements, quantity, and confirmed project scope.
CNC Turning
Flexible Turning for Custom Parts
Suitable For: Custom rotational parts across prototype, batch, and repeat-production requirements, depending on geometry, material, features, and quantity.
Process Considerations: Turning features, threads, grooves, drilled or milled details, secondary operations, and finish requirements can be reviewed by project.
Swiss Turning
For Suitable Small-Diameter Parts
Suitable For: Small-diameter, longer-length, or feature-dense turned parts when geometry and quantity are suitable for Swiss turning.
Process Considerations: Part diameter, length-to-diameter relationship, material, tolerances, feature complexity, and expected quantity should be reviewed together.

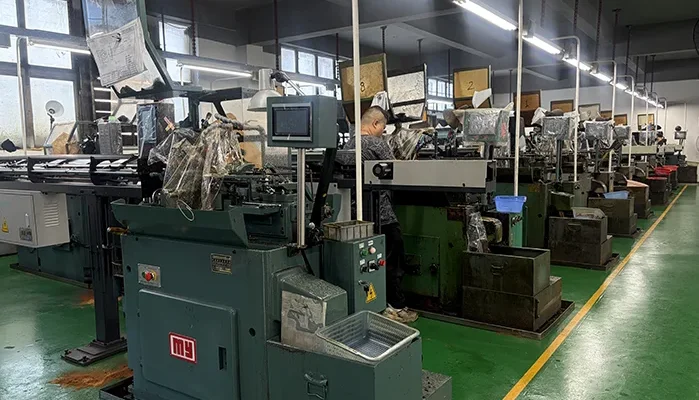

Automatic Lathe Turning
For Suitable Repeat-Production Parts
Suitable For: Repeat-production parts with suitable geometry, stable specifications, and confirmed volume requirements.
Process Considerations: Part design, material, feature complexity, tooling needs, required quantity, and future demand should be evaluated before process selection.
CNC Turning Planning for Custom Part Requirements
CNC turning requirements can be reviewed according to part geometry, material, specified dimensions, threads, tolerances, quantity, secondary operations, finishing, and documentation needs. The appropriate production approach depends on the confirmed project scope.
Prototype and Production Requirements
Prototype quantities, repeat-production needs, material requirements, and expected volume can be reviewed to help determine an appropriate CNC turning approach.
Fit-Critical Features and Tolerances
Identify dimensions, threads, bores, diameters, mating surfaces, and other features that control fit, function, or assembly requirements.
Drawing and Manufacturing Review
Drawing information, material, turning features, secondary operations, finish requirements, and documentation needs can be reviewed as part of quotation planning.
Material and Finishing Options for CNC Turned Parts
Material and surface finishing options can be reviewed according to part geometry, specified material grade, functional requirements, appearance requirements, quantity, and confirmed project scope. Surface finishing is available as part of FIWOK-manufactured CNC turning projects.
Common Material Groups
- Aluminum: Common grades and tempers can be reviewed according to weight, strength, machining, and finish requirements.
- Stainless Steel: Material grade, part function, finish, and environmental requirements should be specified.
- Carbon and Alloy Steel: Options can be considered based on strength, machinability, heat treatment, and finish requirements.
- Brass and Copper: Suitable options may be reviewed for conductive, mechanical, or appearance-related part requirements.
- Engineering Plastics: Select materials may be evaluated according to geometry, application, temperature, and functional needs.
Finishing and Related Operations
- Anodizing: Available for compatible aluminum parts when specified by finish type, color, visible surfaces, and applicable requirements.
- Passivation: May be considered for suitable stainless-steel parts when specified in the project requirements.
- Conversion Coating: Can be reviewed according to material, finish standard, masking areas, and functional requirements.
- Plating and Black Oxide: Specified options may be reviewed based on material, surface requirements, and designated features.
- Mechanical Preparation: Deburring, blasting, brushing, or tumbling may be included based on part and finish requirements.
Laser marking, heat treatment, hardware installation, light assembly, documentation, and packing requirements can also be reviewed when specified in the RFQ and confirmed project scope.
| RFQ Planning Topic | Information to Include With Your RFQ |
|---|---|
| Prototype and Production Requirements | State the required quantity, whether the request is for a prototype, pilot quantity, or repeat production, and any expected future demand. This information helps evaluate material, tooling, process, and inspection requirements. |
| Fit-Critical Features and Tolerances | Identify dimensions and interfaces that control fit, function, or assembly. Include key diameters, threads, bores, sealing surfaces, datums, mating features, and any specified inspection requirements. |
| Documentation and Verification Requirements | Specify any required material records, Certificates of Conformance, dimensional reports, finish records, or other documentation in the RFQ. Requested documentation and verification requirements can be reviewed as part of the confirmed project scope. |
Inspection Planning for CNC Turned Parts
Inspection requirements can be reviewed according to material, specified dimensions, threads, fit-critical features, finish requirements, quantity, and requested documentation. The applicable verification approach depends on the drawing and confirmed project scope.
Material Requirements Review
Specified material, grade, condition, and requested material records can be reviewed as part of project planning.
Review Focus: Material callouts, documentation requirements, and applicable part specifications.
First-Part Requirements
First-part inspection, sample approval, or other initial verification requirements may be included when specified in the RFQ or purchase documentation.
Review Focus: New or revised parts, identified critical features, and requested approval requirements.
In-Process Feature Checks
Specified dimensions, threads, bores, diameters, and other critical features may be checked during production according to project requirements.
Review Focus: Drawing callouts, inspection methods, sampling requirements, and production scope.
Final Verification and Documentation
Final inspection, sampling, reporting, material records, Certificates of Conformance, or other documentation may be included when requested and confirmed.
Review Focus: Final acceptance requirements, packing requirements, and agreed documentation scope.
CNC Turning RFQ Questions
How should critical tolerances be identified?
Identify the dimensions and interfaces that control fit, function, or assembly. Include key diameters, threads, bores, sealing surfaces, datums, mating features, and any specified inspection requirements in the drawing.
Can prototype and repeat-production requirements be reviewed?
CNC turning requirements can be reviewed for prototype parts, pilot quantities, and repeat-production projects. Please include the current required quantity and expected future volume, if known, with the RFQ.
What documentation can be requested?
Material records, Certificates of Conformance, dimensional reports, finish records, and other documentation may be included when specified in the RFQ and confirmed within the project scope.
How should drawing revisions be submitted?
Please send the current drawing revision and clearly identify changed features or requirements. Changes may affect material, tooling, machining steps, finishing, inspection, quantity, and quotation requirements.
Can finishing and masking requirements be included?
Surface finishing is available as part of FIWOK-manufactured CNC turning projects. Please identify the required finish, color, standard, visible surfaces, masking areas, dimensional considerations, and packing requirements in the RFQ.
What information should be included in a CNC turning RFQ?
Include the current 2D drawing, 3D model when available, material grade, quantity, tolerances, threads, finish requirements, critical features, requested documentation, and packing requirements. Complete information helps evaluate the manufacturing requirements and prepare an appropriate quotation.
Send Your CNC Turning RFQ
Submit your drawing package and project requirements for review. Include the information needed to evaluate material, machining, finishing, inspection, documentation, quantity, and packing requirements.
Submit Your RFQ PackageOr email your files directly to: sales@fiwokmachining.com
RFQ Checklist
-
Drawings: Current 2D drawing and 3D model, if available.
-
Material & Finish: Material grade and surface-finish requirements.
-
Quantity: Required quantity and expected future volume, if known.
-
Critical Features: Identify fit, thread, sealing, or assembly features.
-
Documentation: State any inspection, material, packing, or labeling requirements.
